Pre-Installation Checklist

Vehicle Model Compatibility

The Canopy Pickup Cam only works with the following Ford vehicles from model year 2022 and onwards:

  • F-150
  • F-150 Lightning
  • Super Duty



Necessary Space and Ports for Installation

To install your Pickup Cam, your vehicle will need:

  • Your OBD II port free to use
  • For trucks with a single row of seats: Space behind driver's seat
  • For trucks with two rows of seats: Space under the driver-side rear seat



Compatible with Factory Rear Window Tints Only

The Pickup Cam works with all Ford factory rear window tints but may not work with any after-market tints applied to the rear window.



Have a Healthy Battery

Ensure your vehicle’s battery is in good health. Do not install the Pickup Cam if you have a battery that requires frequent jump starting or does not start your vehicle reliably.



Direct OBD-II Port Connection Required

Do not use an OBD-II splitter when installing, as it can interfere with the performance of the Canopy Pickup Cam. Direct connection to the OBD-II port is necessary for proper operation.



Don’t Install in Temperatures Below Freezing

Only install the Pickup Cam in ambient temperatures above 0°C/32°F. Do not attempt to install the Pickup Cam in colder temperatures, as this will impair the install procedure.

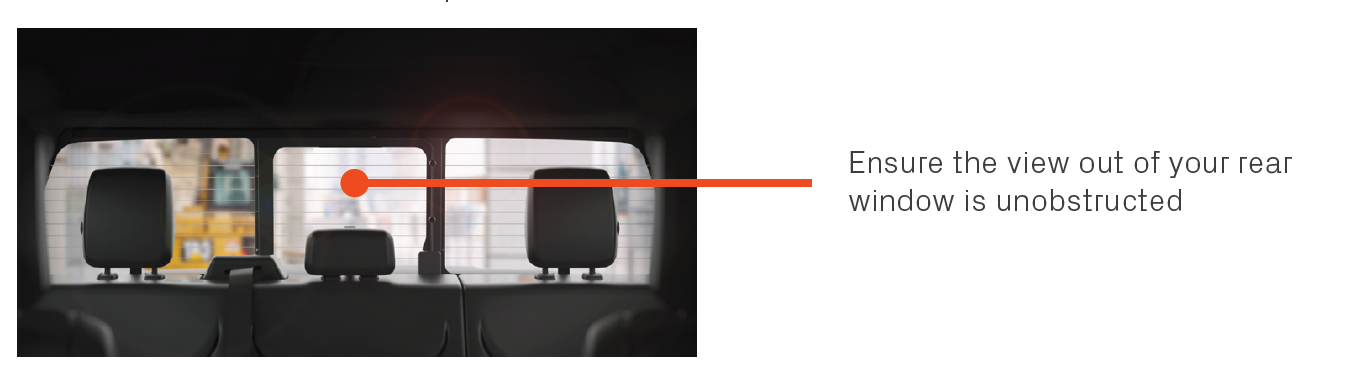

A Clear View out of the Rear Window

The Pickup Cam mounts on the inside of your rear window and requires a clear view of your truck bed. Ensure there are no large decals on your rear window or obstructions in the truck bed that could block the Pickup Cam’s view.

Screenshot 2024-10-14 at 16.05.21.pngTruck Bed Accessories

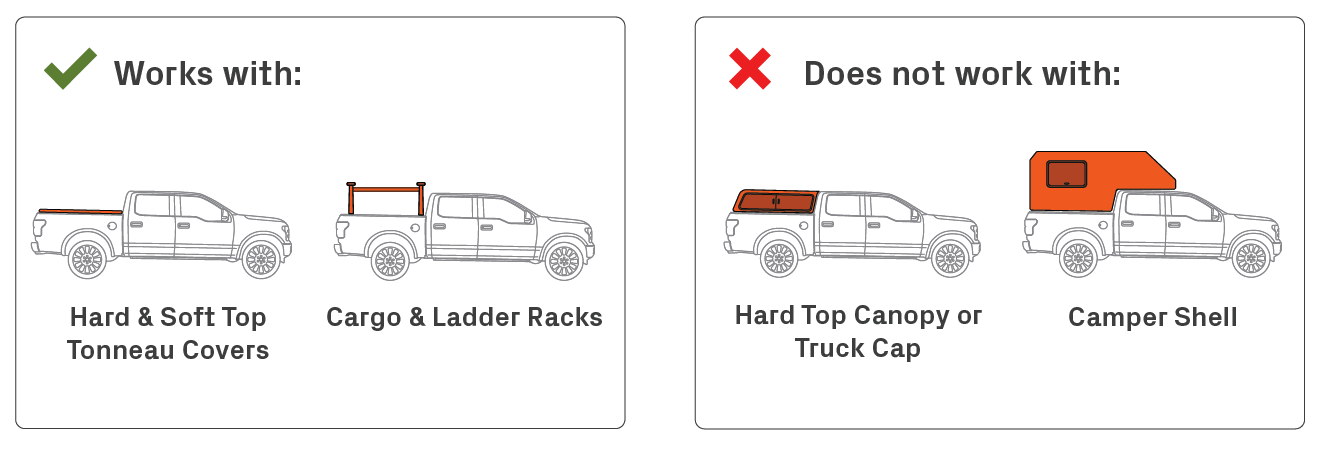

The Canopy Pickup Cam is designed to monitor ‘uncovered’ pickup trucks, and may not work with certain after market accessories:

Screenshot 2024-10-14 at 16.05.45.png
